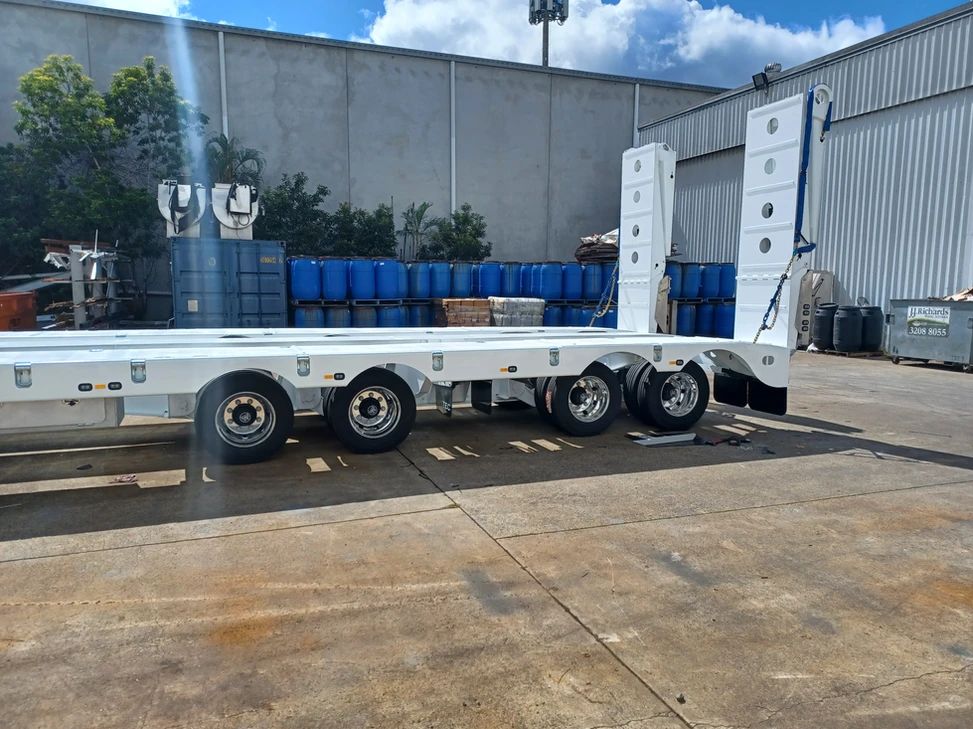

2024 LUSTEC MODEL 026 4X4 DECK WIDENER REAR STEAR
Have a similar truck to sell? List yours now for $29.
Getting a quote won't affect your credit score.
( 60 months - 6.85% p.a. )
- Details
Map
250 Karrabin Rosewood Rd, Karrabin Queensland 4306
Directions:
Seller's Comment
$POA
Model 026
4x4 Deck Widener Rear Steer

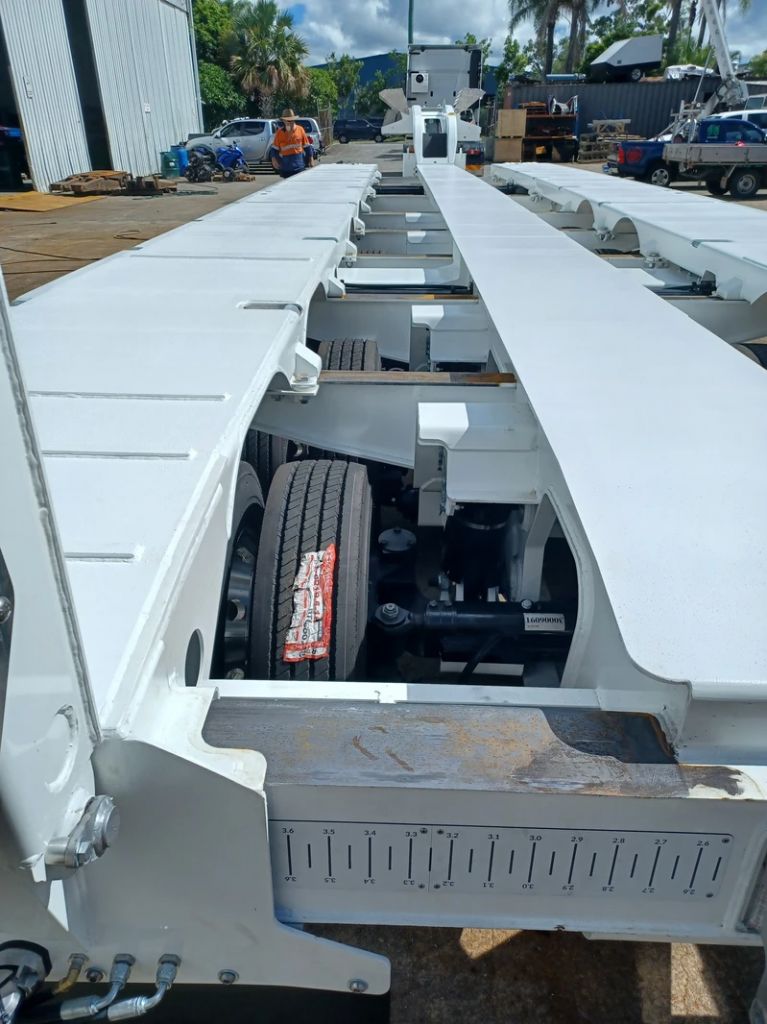

The 026 4x4 Deck Widener Rear Steer frame is fabricated from Grade 700 plate. The frame design is a 'through beam' chassis which allows for greater strength, maximum protection of axles, and low deck heights.
Spec Overview
Maximum Trailer Capactity
60,000kg
Legal Payload on Tri Group
50,000kg
Widening and Weights
Decks widen to 3.7m and are fully rated at maximum width
Approx. Tare Weight
13.5 - 15 tonnes, depending on options fitted
Standard Inclusions
Gooseneck
Single king pin oscillating skid plate
Main Deck
920mm wide outer decks allow the trailer to widen from 2.5m to 3.7m using hydraulic phasing cylinders
Tie Down Points
Equipped with 9 tonne load rated swivelling tie down points recessed into the coaming
Ringfeder Bracket
Equipped with bracket only. Hydraulic, air and electrical lines run to the bracket bulkhead
Ramps
Single fold - fabricated from Grade 700 plate with 25mm x 12mm grip lugs
Legs
Hydraulic landing legs with manual and remote control
Axles & Suspension
Lustec double-acting hydraulic suspension with K-Hitch disc brake axles

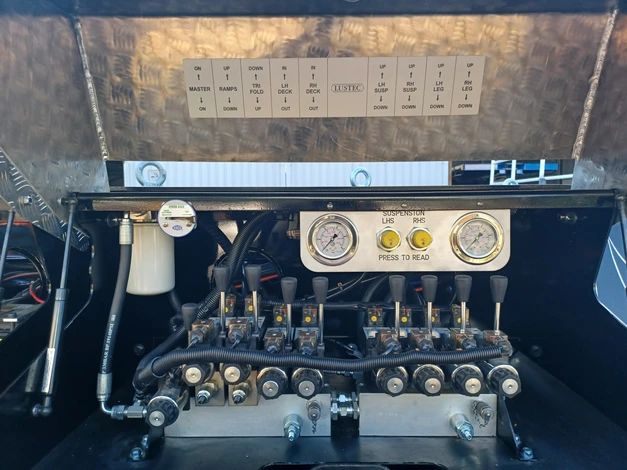

Hydraulic Pressure
Kohler Diesel 7HP
Container Locks
6 x twist locks supplied with 2 x container stands. Trailer has provisions to carry 1 x40' container or 2 x 20' containers or 1 x 20' heavy container in the middle of the deck
Options
We have a large range of options to personalise your new Lustec float. Please talk to our team about any requests you may have. Listed below is a small sample of what we can do.
Lighting
Extra side lights. LED work lights
Top of Decks
Extra tie down points. Rubber on decks. Drop wells with removable infill panels
Winches
Selection from a range of different size winches and mounting locations
Ramps
Bi-fold for improved loading angle. Tri-fold ramps picture
Tool Boxes
Additional tool boxes can be spec'd including both small and large draw style tool boxes. Small draw style tool box pictured
