2024 LUSTEC MODEL 555 NARROW SPREAD 3X4 DROP DECK WIDENER
Have a similar truck to sell? List yours now for $29.
Getting a quote won't affect your credit score.
( 60 months - 6.85% p.a. )
- Details
Map
250 Karrabin Rosewood Rd, Karrabin Queensland 4306
Directions:
Seller's Comment
Model 555
3x4 Drop Deck Widener - Narrow Spread
The 3x4 Drop Deck Widener frame is fabricated from Grade 700 plate. All frame materials are processed at our manufacturing facility here is Brisbane. Frames are hand welded by our dedicated team of local craftsmen. The frame is a 'through beam' chassis which allows for greater strength, maximum protection of axles, and low deck heights.
Spec Overview
Maximum Trailer Capactity
45,000kg
Legal Payload on Tri Group
25,000kg
Widening and Weights
Decks widen to 4m and are fully rated at maximum width.
Approx. Tare Weight
11.8 - 13.5 tonnes, depending on options fitted
Standard Inclusions

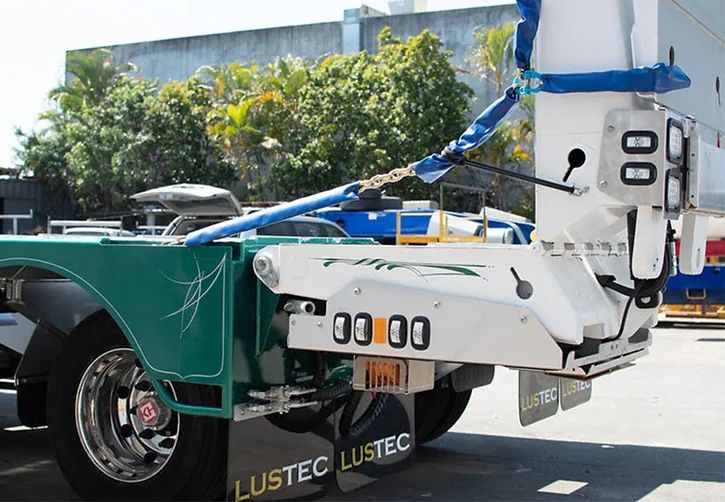

Gooseneck
Double king pin non-oscillating skid plate with fold over decks and fold down ramps
Main Deck
920mm wide outer decks allow the trailer to widen from 2.5m to 4m using hydraulic phasing cylinders
Tie Down Points
Equipped with 6 tonne load rated swivelling tie down points recessed into the coaming
Ringfeder Bracket
Equipped with bracket only. Hydraulic, air and electrical lines run to the bracket bulkhead
Ramps
Single fold - fabricated from Grade 700 plate with 25mm x 12mm grip lugs
Legs
Hydraulic landing legs with manual and remote control
Axles & Suspension
K-Hitch air bag suspension with K-Hitch drum brake axles
Hydraulic Pressure
Kohler Petrol 7HP
Container Locks
6 x twist locks supplied with 2 x container stands. Trailer has provisions to carry 1 x40' container or 2 x 20' containers or 1 x 20' heavy container in the middle of the deck
Options
We have a large range of options to personalise your new Lustec float. Please talk to our team about any requests you may have. Listed below is a small sample of what we can do.
Lighting
Extra side lights. LED work lights
Top of Decks
Extra tie down points. Rubber on decks. Drop wells with removable infill panels
Winches
Selection from a range of different size winches and mounting locations
Deck Widening
Widening to 4.2m, and fully rated at maximum width
Ramps
Bi-fold for improved loading angle. Tri-fold ramps pictured

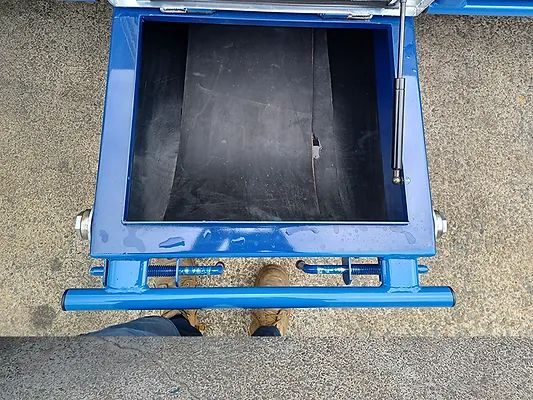

Tool Boxes
Additional tool boxes can be spec'd including both small and large draw style tool boxes. Small draw style tool box pictured
