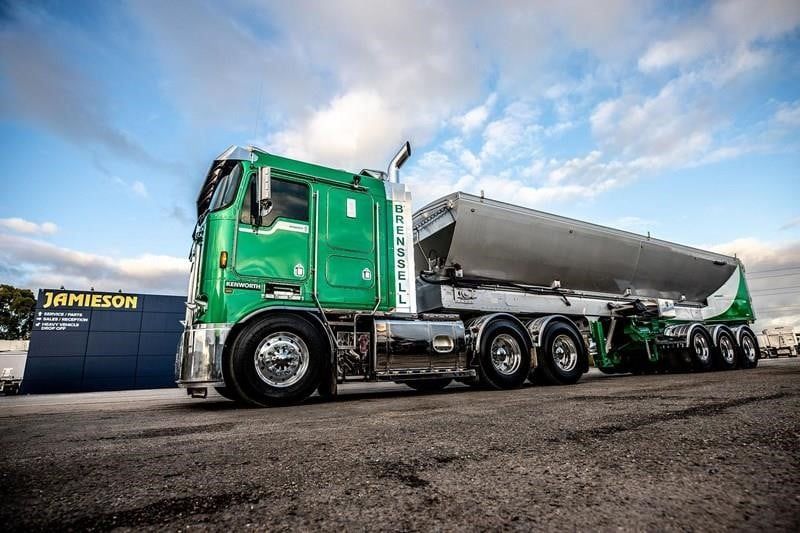

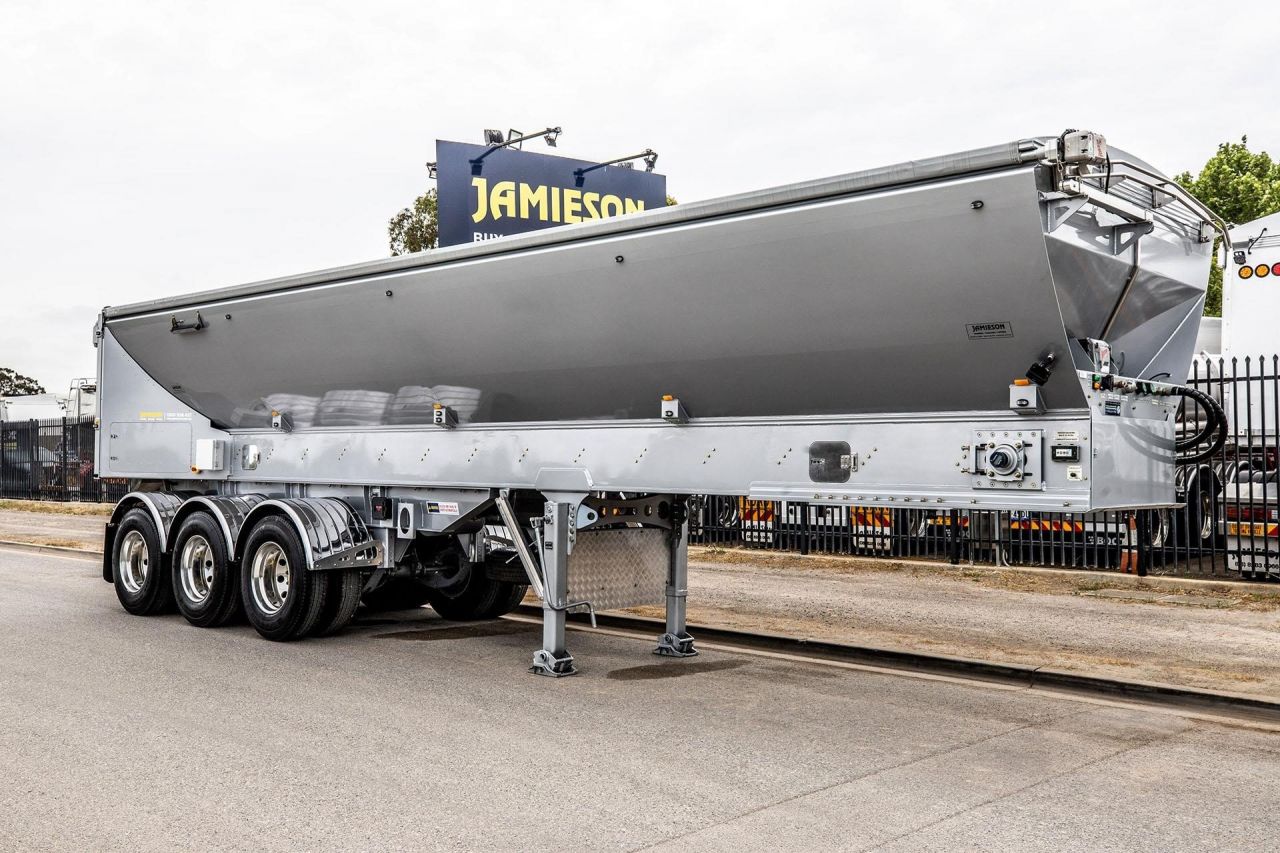

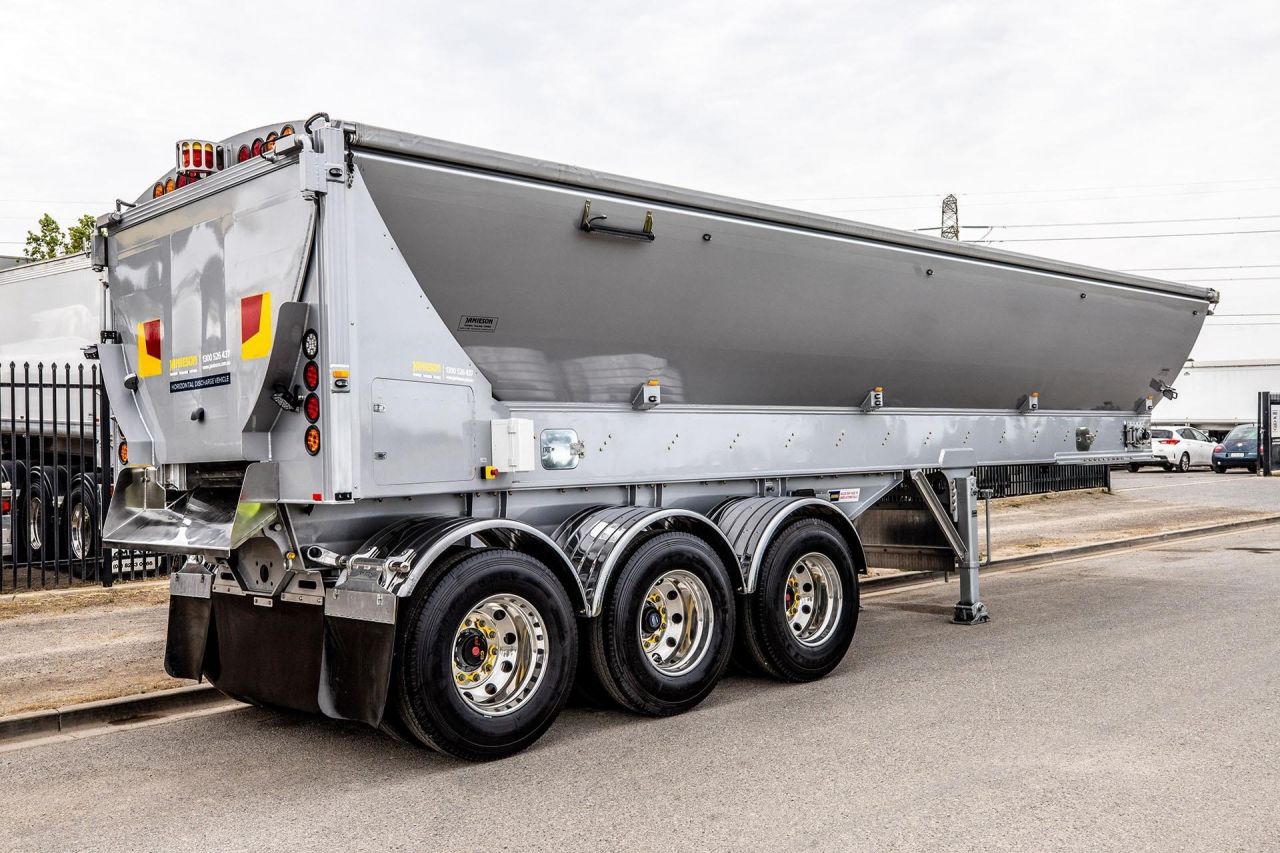

2024 JAMIESON HDV (HORIZONTAL DISCHARGE VEHICLE) LIVE BOTTOM Live Bottom Trailer
Have a similar truck to sell? List yours now for $29.
Getting a quote won't affect your credit score.
( 60 months - 6.85% p.a. )
- Details
Map
714-720 Port Wakefield Rd, Parafield Gardens South Australia 5107
Directions:
Seller's Comment
Available now. Call or enquire today to secure yours and avoid disappointment.
Suit asphalt, gravel, potatoes, soil, grain, carrots, sand, heavy rocks and more.
Live bottom trailers are the perfect choice for a range of applications across agriculture, civil and construction industries. More versatile and safer than tipping trailers, Jamieson Live Bottom Trailers could transform your haulage operations. Ask us how.
BODY CONSTRUCTION
All aluminium lightweight continuously welded integrated fabricated I-Beam
Sides 6 mm rolled aluminium curved clean line curved side of the body
Front 6 mm aluminium headboard
Rear 6 mm aluminium single top hinge hydraulic door with safety anti-fall system
INSULATION
(Optional) Sidewalls insulated with 75 mm grade 450 Rockwool
(Optional) Outer clean skin cladding 0.55mm polished 316 stainless steel sheeting
LIGHTS
Round Baxters tail/combination lights
Hella work lights
Hella LED side clearance lights
Hella LED side indicator lights
SKID PLATE
Reinforced 12 mm removable skid plate bolted
Removable 50 mm single position kingpin bolted
REAR DOOR
6 mm aluminium construction
Single top-hinged hydraulic tailgate
Safety prop included
TARPS, POLES & REMOTES
Pneumatic throw over the centre bar
Razor remote control rollover tarp
Flashed and heat rated application for asphalt
Three (3) removable arched bows
Removable centre cross-bar
CONVEYOR BELT & REMOTES
Dual direction conveyor belt
Heavy-duty belt specific to hot asphalt, resistant to heat, chemical and abrasion
Full remote control belt operation (2nd remote optional)
Low maintenance, low friction belt drive slat system
Chain self-oiling bio-degradable system
Rear station of trailer roller conveyor cleaning scrub/brush
All backed by our unmatched 24 Month Warranty and Nationwide Servicing, plus:
• Fast Interstate Delivery
• Same Day Finance
• Trade-Ins Welcome
Contact us today for more details or a full demonstration. Not quite what youre looking for? Call or enquire online and our expert, friendly team will help you find what you need.
*All information is indicative only and subject to change without notice and/or depending on final specification. Please contact Jamieson for confirmation.
