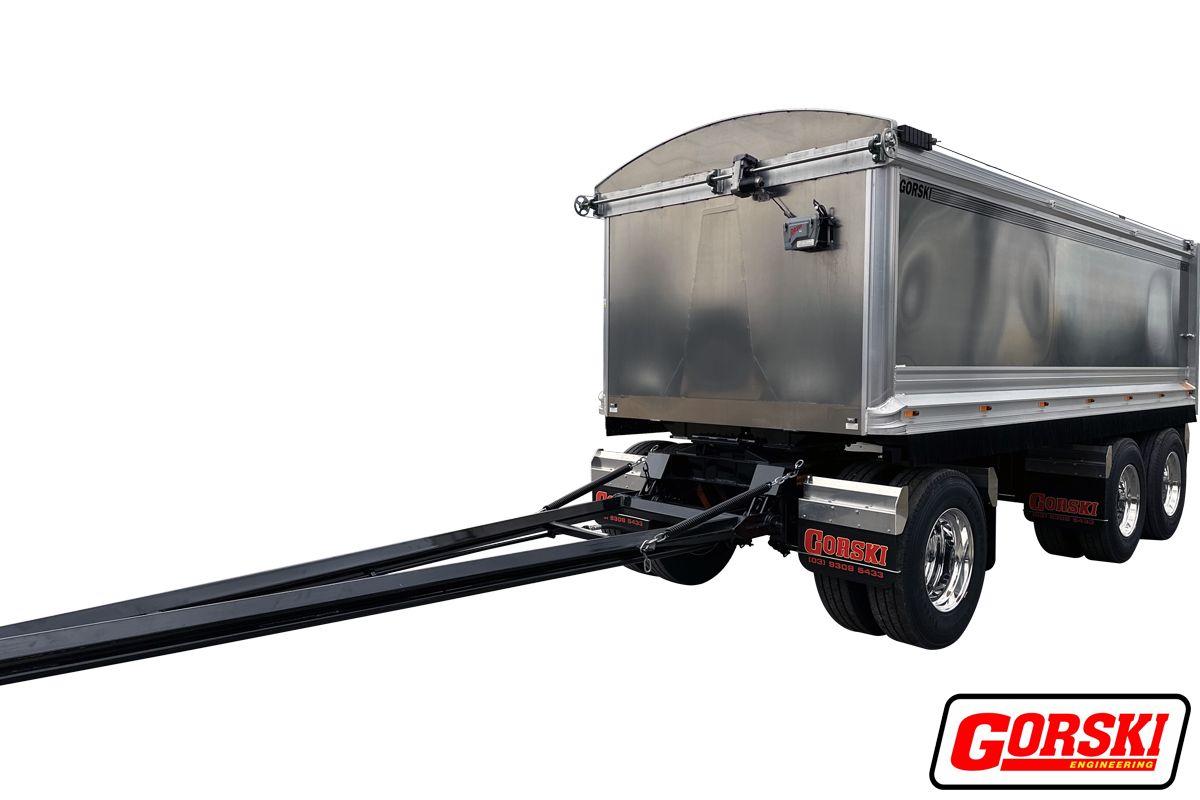

Gorski 3 Axle Dog Tipping Trailer 48T Spec Aluminium New - AL-DT3-48T

NEW GORSKI 3 AXLE DOG TIPPING TRAILER 48T SPEC COMPLETE:

BODY:
"Gorski Premium" Body up to 19.5m3 approx.
6.000m long x 1.450m high approx.
- Body Dimensions subject to final engineering design and approval
- 5mm Grade 5083 Aluminium Side Sheets with extruded Top Rail and internal bottom radius.
- 5mm Grade 5083 Aluminium Tailgate with 1-way hinge, air operated
- 8mm Grade 5083 Aluminium Floor Sheet (upgradeable to 10mm as an option)
- Main Bearer extrusion 232mm
- Spreader Chains connected to tailgate
Included: 175mm Spray Suppressant, 1 x Aluminium Drop Down Ladder, 1 x Aluminium Grain Door & 1 x Set Grain Locks

RUNNING GEAR:
"Gorski Premium" heavy duty chassis fitted with:
-              TMC Drum Brake Axles (10 Stud 285mm)
-              TMC LMV Light-weight Airbag Suspension
-              ABC EBS Brake Control System
Compliant with ADR38

RIMS & TYRES:
11R22.5 Tyres fitted to Aluminium Rims (Aluminium polished outers and Aluminium machined inners).
Compliant with ADR24

DRAWBAR & TOW EYE:
“Gorski Premium” heavy duty drawbar fitted with 50mm Tow eye and attachments; includes oil, air, electric and ebs couplings
Compliant with ADR62

HYDRAULICS:
Hidromas 4 Stage telescopic hoist w/ chrome plated stages, 32T approx

LIGHTING:
LED Side Lamps x7 per side, LED Rear Lamps x3 per side with regulation reflectors, 2x reverse spots, licence plate lamp and reverse squawker.
- "Gorski Premium" Aluminium Light Brackets fitted to heavy duty, 50x50x5mm RHS.
Compliant with ADR 13

PAINT:
Chassis (Black) finished using hi-grade industrial paint (2 Pac).  Side/Rear Gorski decals also included, as well as regulation Rear Marker Plates and safety stickers.

TARP:
Razor electric remote control tarp kit, Black PVC
**Please note:  The premium amperage for supply from vehicle to your Razor Tarp Motor is 5 Amps.  If your prime mover is unable to supply this amperage you may need your auto elec for further works after delivery.

ADDITIONAL EXTRAS:
Please see list of all upgradeable extras

REGISTRATION:
We can only register your new trailer within our own state Victoria.  Please notify us if you would like to add Victorian Registration and Stamp Duty.  If you are living interstate, we can arrange a “Permit to Travel” to assist in getting your new trailer back to your home state.

PLEASE NOTE:  PHOTOS ARE TO BE USED AS A GUIDE ONLY
