GORSKI 5 AXLE DOG TIPPING TRAILER HARDOX NEW - QT-DT5

NEW GORSKI 5 AXLE DOG TIPPING TRAILER COMPLETE:

BODY:

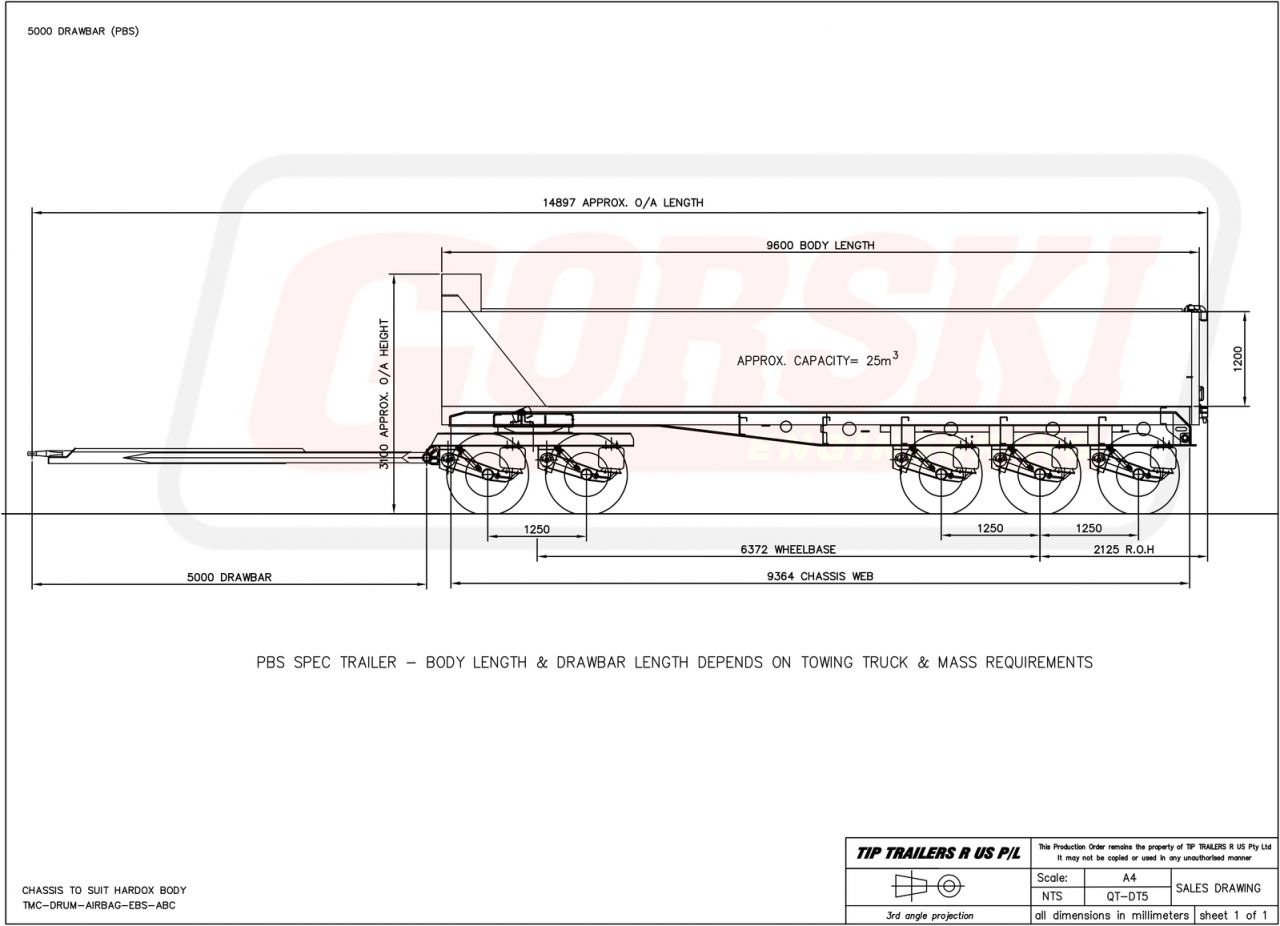

"Gorski Premium" Body up to 25m3 approx.
9.600m long x 1.200m high approx.
- Body Dimensions subject to final engineering design and approval
- 5mm QT450 HARDOX side sheets with internal pressed sides and pressed front sheet.
- 6mm QT450 HARDOX Floor sheet
- 5mm QT450 HARDOX  Tailgate with 50mm 2-way Side Swing kit, air operated
- "Gorski Premium" full length pressed top rails & splash guards
- Angle welded to top of side walls and tail door
- "Gorski Premium" Fabricated Heavy Duty Main bearer 200mm
- Shovel rack fitted to front of body with ergonomic steps front of body
- Spreader Chains connected to tailgate
Included: 175mm Spray Suppressant full length of body

RUNNING GEAR:
"Gorski Premium" heavy duty chassis fitted with:
-              TMC Drum Brake Axles (10 Stud 285mm)
-              TMC LMV Light-weight Airbag Suspension
-              ABC EBS Brake Control System
Compliant with ADR38

RIMS & TYRES:
11R22.5 Tyres fitted to Aluminium Rims (Aluminium polished outers and Aluminium machined inners).
Compliant with ADR24

DRAWBAR & TOW EYE:
“Gorski Premium” heavy duty drawbar fitted with 50mm Tow eye and attachments; includes oil, air, electric and ebs couplings
Compliant with ADR62

HYDRAULICS:
Hidromas 5 Stage telescopic hoist w/ chrome plated stages, 60T approx

LIGHTING:
LED Side Lamps x7 per side, LED Rear Lamps x3 per side with regulation reflectors, 2x reverse spots, licence plate lamp and reverse squawker.
- "Gorski Premium" Aluminium Light Brackets fitted to heavy duty, 50x50x5mm RHS.
Compliant with ADR 13

PAINT:
Body ("Gorski" white) and Chassis Rails (Black) finished using hi-grade industrial paint (2 Pac).  Side/Rear Gorski decals also included, as well as regulation Rear Marker Plates and safety stickers.
***Please note: to match colour to your truck cabin in a specific white may incur an additional fee.  It is also important to mention that we do not paint inside the tipper body.

TARP:
Razor electric remote control tarp kit, Black PVC

ADDITIONAL EXTRAS:
Please see list of all upgradeable extras

REGISTRATION:
We can only register your new trailer within our own state Victoria.  Please notify us if you would like to add Victorian Registration and Stamp Duty.  If you are living interstate, we can arrange a “Permit to Travel” to assist in getting your new trailer back to your home state.

PLEASE NOTE:  PHOTOS ARE TO BE USED AS A GUIDE ONLY
